cas server和client搭建

下载地址：GitHub - apereo/cas-overlay-template at 5.3Apereo CAS WAR Overlay template. Contribute to apereo/cas-overlay-template development by creating an account on GitHub.https://github.com/apereo/cas-ov

为爱停留

1083人浏览 · 2022-04-16 18:20:44

为爱停留 · 2022-04-16 18:20:44 发布

cas-server

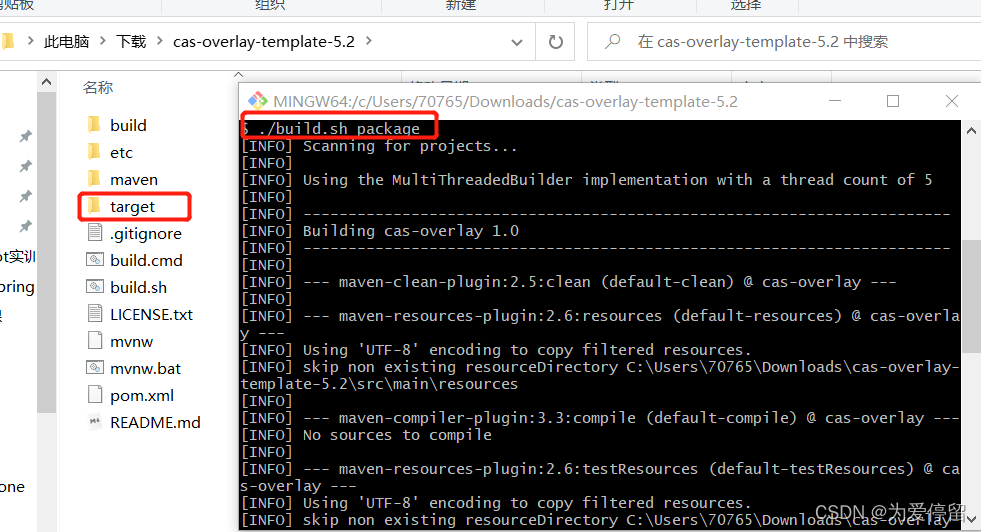

解压压缩包，执行打包命令：

./build.sh package

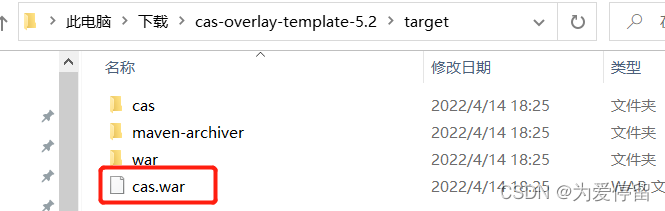

再把cas.war放到tomcat 的webapp下

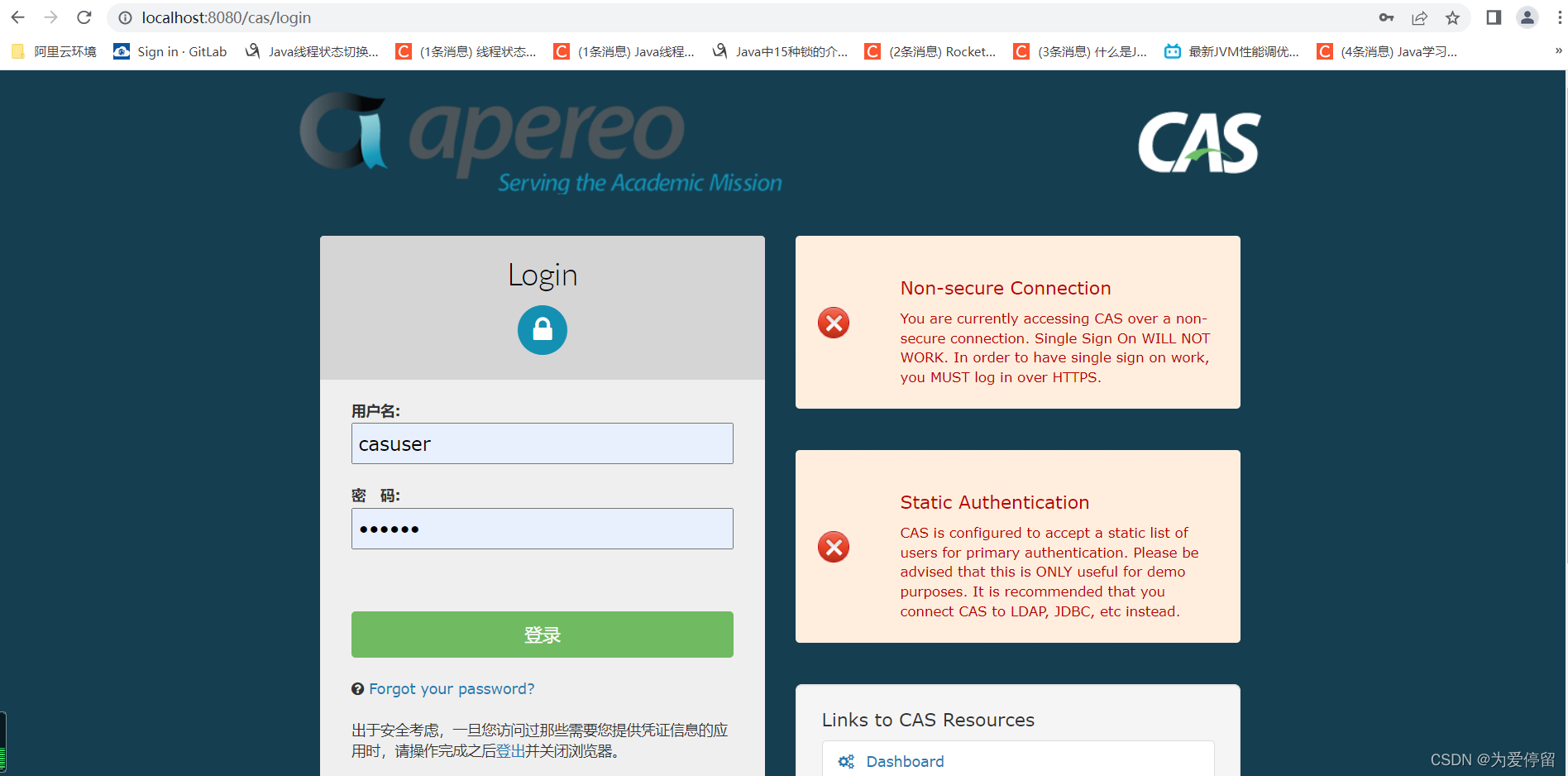

执行：http://localhost:8080/cas/login ，初始用户名：casuser, 密码：Mellon

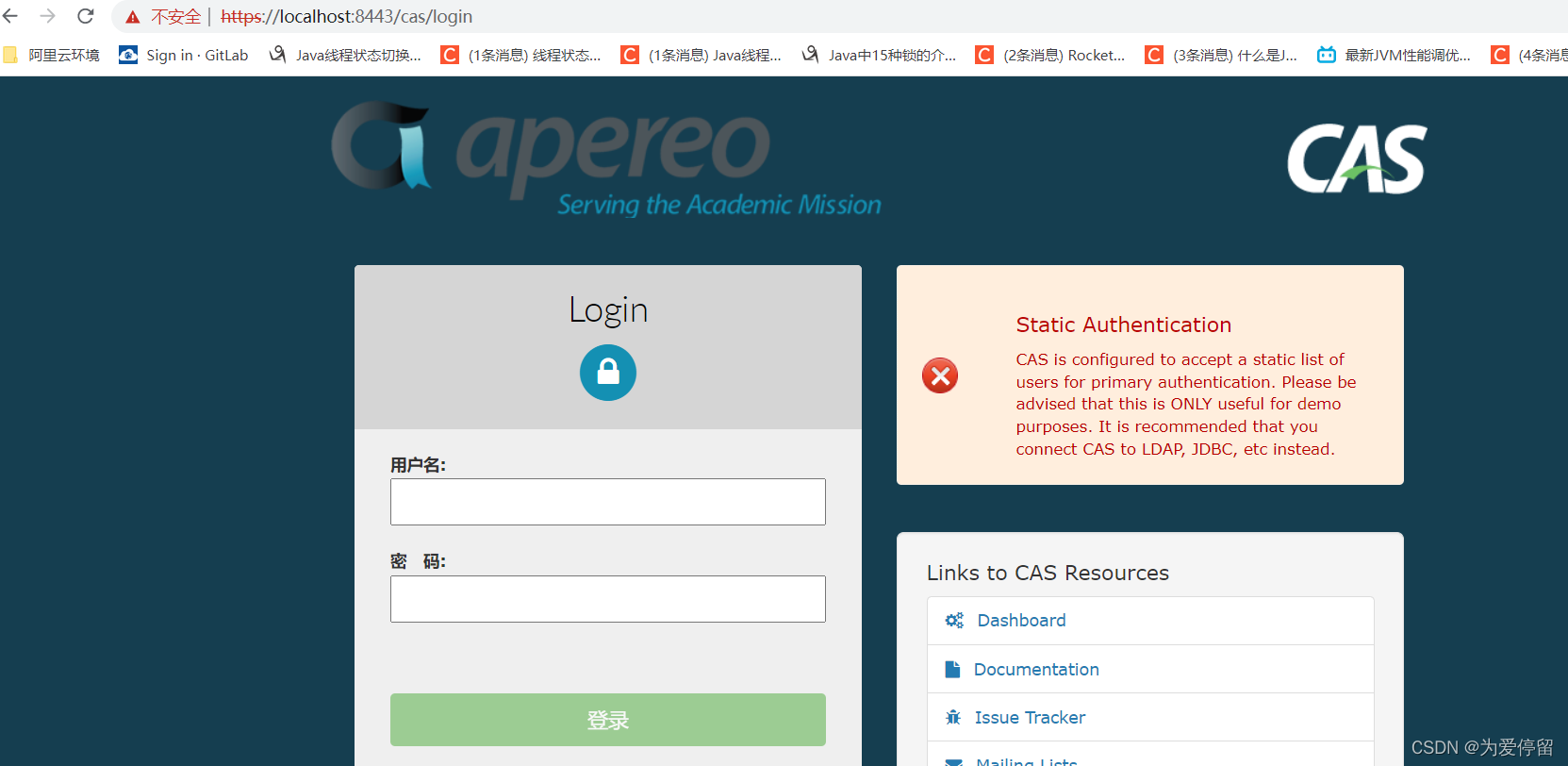

配置cas server https访问：

用java自带keytool命令生成证书：

keytool -genkey -alias uums -keyalg RSA -keypass 123456 -storepass 123456 -ext san=ip:192.168.2.6 -keystore D:\apache-tomcat-9.0.62\cert\uums.keystore -validity 3600

-ext san=ip:192.168.2.6 这个特别重要，这个ip是cas-client端的ip，如果不配置，cas-client通过ip就访问不了cas-server

tomcat conf\server.xml种配置：

<Connector port="8443" protocol="org.apache.coyote.http11.Http11NioProtocol"
 maxThreads="150" SSLEnabled="true" scheme="https" secure="true"
 clientAuth="false" sslProtocol="TLS"
 keystoreFile="D:\apache-tomcat-9.0.62\cert\uums.keystore" keystorePass="123456"/>

cas server端其实这样就可以了

cas-client

下面这两步特别重要：否则cas-client通过ip访问不了cas-server

1、导出证书

keytool -export -trustcacerts -alias uums -file D:\apache-tomcat-9.0.62\cert\uums.cer -keystore D:\apache-tomcat-9.0.62\cert\uums.keystore -storepass 123456

这个uums.keystore就是cas-server种tomcat配置的那个证书

2、把证书导入到cas client所在的Jre环境中

keytool -import -alias uums -file D:\apache-tomcat-9.0.62\cert\uums.cer -keystore ..\jre\lib\security\cacerts

maven配置：

       <dependency>
            <groupId>net.unicon.cas</groupId>
            <artifactId>cas-client-autoconfig-support</artifactId>
            <version>1.4.0-GA</version>
        </dependency>

配置文件cas.properties：

server-url-prefix=https://192.168.2.6:8443/cas
server-login-url=https://192.168.2.6:8443/cas/login
client-host-url=http://localhost:9003/index
server-logout-url =https://192.168.2.6:8443/cas/logout
client-logout-url =https://192.168.2.6:8443/cas/logout?service=http://localhost:9003/logout/success
validation-type=cas
server-name=http://localhost:9003

配置类：

package com.oumuv.cas.conf;

import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.PropertySource;
import org.springframework.stereotype.Component;

@PropertySource("cas.properties")
@ConfigurationProperties
@Component
public class CASConfig {


    private String serverUrlPrefix;
    private String serverLoginUrl;
    private String clientHostUrl;
    private String serverLogoutUrl;
    private String validationType;
    private String serverName;
    private String clientLogoutUrl;


    public String getServerUrlPrefix() {
        return serverUrlPrefix;
    }

    public void setServerUrlPrefix(String serverUrlPrefix) {
        this.serverUrlPrefix = serverUrlPrefix;
    }

    public String getServerLoginUrl() {
        return serverLoginUrl;
    }

    public void setServerLoginUrl(String serverLoginUrl) {
        this.serverLoginUrl = serverLoginUrl;
    }

    public String getClientHostUrl() {
        return clientHostUrl;
    }

    public void setClientHostUrl(String clientHostUrl) {
        this.clientHostUrl = clientHostUrl;
    }

    public String getServerLogoutUrl() {
        return serverLogoutUrl;
    }

    public void setServerLogoutUrl(String serverLogoutUrl) {
        this.serverLogoutUrl = serverLogoutUrl;
    }

    public String getValidationType() {
        return validationType;
    }

    public void setValidationType(String validationType) {
        this.validationType = validationType;
    }

    public String getServerName() {
        return serverName;
    }

    public void setServerName(String serverName) {
        this.serverName = serverName;
    }

    public String getClientLogoutUrl() {
        return clientLogoutUrl;
    }

    public void setClientLogoutUrl(String clientLogoutUrl) {
        this.clientLogoutUrl = clientLogoutUrl;
    }
}

package com.oumuv.cas.conf;

import org.jasig.cas.client.authentication.AuthenticationFilter;
import org.jasig.cas.client.session.SingleSignOutFilter;
import org.jasig.cas.client.session.SingleSignOutHttpSessionListener;
import org.jasig.cas.client.util.HttpServletRequestWrapperFilter;
import org.jasig.cas.client.validation.Cas30ProxyReceivingTicketValidationFilter;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.web.servlet.FilterRegistrationBean;
import org.springframework.boot.web.servlet.ServletListenerRegistrationBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import java.util.EventListener;
import java.util.HashMap;
import java.util.Map;


@Configuration
public class CASAutoConfig {

    @Autowired
    private CASConfig casConfig;

    //用户用户登出拦截
    @Bean
    public FilterRegistrationBean filterSingleRegistration() {
        FilterRegistrationBean registration = new FilterRegistrationBean();
        registration.setFilter(new SingleSignOutFilter());
        // 设定匹配的路径
        registration.addUrlPatterns("/logout");
        Map<String,String> initParameters = new HashMap<String, String>();
        initParameters.put("casServerUrlPrefix", casConfig.getServerLogoutUrl());
        registration.setInitParameters(initParameters);
        // 设定加载的顺序
        registration.setOrder(1);
        return registration;
    }

    //去cas server中验证ticket的是否有效
    @Bean
    public FilterRegistrationBean filterValidationRegistration() {
        FilterRegistrationBean registration = new FilterRegistrationBean();
        registration.setFilter(new Cas30ProxyReceivingTicketValidationFilter());
        // 设定匹配的路径
        registration.addUrlPatterns("/*");
        Map<String,String>  initParameters = new HashMap<String, String>();
        initParameters.put("casServerUrlPrefix", casConfig.getServerUrlPrefix());
        initParameters.put("serverName", casConfig.getServerName());
        initParameters.put("useSession", "true");
        registration.setInitParameters(initParameters);
        // 设定加载的顺序
        registration.setOrder(1);
        return registration;
    }

    //主要是看当前session是否存在用户信息，如不存在，则进行cas登录
    @Bean
    public FilterRegistrationBean filterAuthenticationRegistration() {
        FilterRegistrationBean registration = new FilterRegistrationBean();
        registration.setFilter(new AuthenticationFilter());
        // 设定匹配的路径
        registration.addUrlPatterns("/*");
        Map<String,String>  initParameters = new HashMap<String, String>();
        initParameters.put("casServerLoginUrl", casConfig.getServerLoginUrl());
        initParameters.put("serverName", casConfig.getServerName());
//        initParameters.put("ignorePattern", "/logout/success");
        //表示过滤所有，SimpleUrlPatternMatcherStrategy过滤规则类
        initParameters.put("ignoreUrlPatternType", "com.oumuv.cas.utils.SimpleUrlPatternMatcherStrategy");

        registration.setInitParameters(initParameters);
        // 设定加载的顺序
        registration.setOrder(1);
        return registration;
    }


    @Bean
    public FilterRegistrationBean filterWrapperRegistration() {
        FilterRegistrationBean registration = new FilterRegistrationBean();
        registration.setFilter(new HttpServletRequestWrapperFilter());
        // 设定匹配的路径
        registration.addUrlPatterns("/*");
        // 设定加载的顺序
        registration.setOrder(1);
        return registration;
    }


    @Bean
    public ServletListenerRegistrationBean<EventListener> singleSignOutListenerRegistration(){
        ServletListenerRegistrationBean<EventListener> registrationBean = new ServletListenerRegistrationBean<EventListener>();
        registrationBean.setListener(new SingleSignOutHttpSessionListener());
        registrationBean.setOrder(1);
        return registrationBean;
    }
}

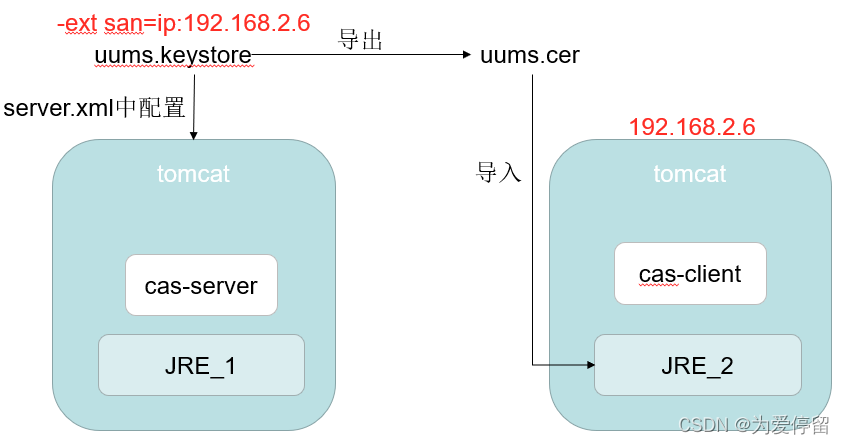

在网上翻阅了很多帖子都没有说清楚，cas client怎么能通过ip访问cas-server端的，由于以前项目中部署过，大致如下：
